Microapplications With EmberJs

### Deliver Awesome Stuff Fast

### Jon Johnson
      ![Jon's avatar](media/gravatar.jpeg)

Slides at: https://jrjohnson.dev/talks/2017-03-microapps.html

<i class="fa fa-github"></i>jrjohnson <br />
      <i class="fa fa-slack"></i>jrjohnson <br />
      <i class="fa fa-twitter"></i>jrjohnson_ <br />

---
      # Who am I?

- Full stack web developer (PHP, Javascript)
      - Technical lead for the Ilios Project open source curriculum management system
      for health science education. (http://iliosproject.org)

???
      ## I get paid to write open source software by UCSF and I love my job

---

# Who am I?

- Full stack web developer (PHP, Javascript)
      - Technical lead for the Ilios Project open source curriculum management system
      for health science education. (http://iliosproject.org)

--

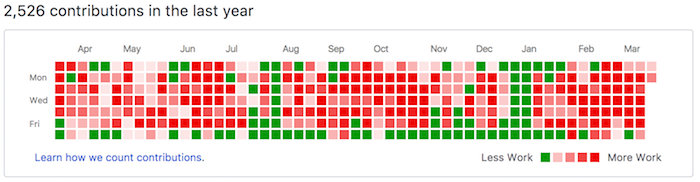

      ### https://tinyurl.com/are-work

---

# What is UCSF?

- 149 years old
      - Focused entirely on health sciences
      - Second largest employer in San Francisco with 24K+ staff and faculty
      - Ranked 3rd in research and 3rd for primary care,
        making it the only medical school to achieve a top-5 ranking in both categories.
      - Nobel Prizes: 1989, 1997, 2009, 2012

???
      I guess that means we're hiring!

---

# What is Ilios

- An ambitious web application
      - Curriculum management system for health science education. (http://iliosproject.org)
      - Deployed at dozens of medical schools on 5 continents
      - A product of UCSF School of Medicine and the MedBiquitous Consortium

???
      - Open API
        - We interconnect with a lot of other systems on campuses and with organizations
        like the American Association of Medical Colleges so having an open
        and well documented API allows data to flow
      - Community
        - We provide Ilios for Free to other medical schools around the world

---
      class: center, middle
      # What is a microapp?

--
      ## That map was one:

---

### app/templates/components/world-map.hbs
      ```handlebars
      {{#g-map as |context|}}
        {{#each (await codedLocations) as |obj|}}
          {{g-map-marker context lat=obj.lat lng=obj.lng}}
        {{/each}}
      {{/g-map}}
      ```

### app/components/world-map.js
      ```javacript
      codedLocations: computed('locations.[]', function(){
        return new Promise(resolve => {
          const locations = this.get('locations');
          map(locations, location => {
            return this.getLatLongForAddress(location);
          }).then(data => {
            resolve(data);
          });

});
      }),
      ```

---
      class: center, middle
      # OK, umm... so what?

---
      class: center
      # Profound and Unstoppable Power of Yes

???
      - UCSF has been going around telling people we say yes!
      - As developers we want to say yes
      - As people we want to help other people
      - The developer life cycle has taught us to be cautious.
      ---

class: center
      # Developer Life Cycle
      .center[![developer life cycle](media/devlife2.png)]

---
      class: center
      # Developer Life Cycle
      .center[![developer life cycle](media/devlife3.png)]

---
      class: center
      # Developer Life Cycle
      .center[![developer life cycle](media/devlife4.png)]

---
      class: center
      # Developer Life Cycle
      .center[![developer life cycle](media/devlife5.png)]

---
      class: center
      # Developer Life Cycle
      .center[![developer life cycle](media/devlife6.png)]

---

class: center
      # Developer Life Cycle
      .center[![technical debt circle](media/debt-circle.png)]

---

class: center
      # Developer Life Cycle
      .center[![build circle](media/build-circle.png)]

---
      class: center
      # Developer Life Cycle
      .center[![developer life cycle](media/devlife6.png)]

---

# Why are we stuck in this loop?

.right-column-focus[
         It isn't possible nor should it be necessary for everyone to understand
         the difference between proof of concept code and production code.
      ]

???
      - The people who think this aren't dumb.
      - Our first pass has to be very nearly production ready.

---
      # Why are we stuck in this loop?

???
      ## Minimum Viable Product

---
      # Why are we stuck in this loop?

.right-column-focus[
        Before we invest too heavily in any one idea we must find and test our riskiest assumptions.
      ]

???
      ## Riskiest Assumption Test

---
      class: center
      # How can we get off this ride?

![finding nemo now what](media/now-what.gif)

---
      class: center
      # Microapps! That's How!

![Emeril saying bam](media/bam.gif)

---
      class: center, middle
      # Do you mean Microservices?

---
      .strike[
        # Microservices?
      ]
      # Microapps

- Take advantage of existing data through APIs
      - Single Responsibility Principle
      - Throw away things that don't work
      - Low cost of enhancement
      - Freedom to choose different technologies

---
      class: center
      # What makes an app micro?

![Researchers with microscopes in Laboratory of Experimental Oncology](media/microscope.jpg)

???
      Credit: https://calisphere.org/item/3fe65b42-122e-48de-8e4b-bc8dcf531216/
      ---

.left-column[
        ## Infrastructure code
      ]
      .right-column[
      - Build System
      - Request Handling
      - Testing
      - Configuration
      - Continuous Integration
      - Deployment
      ]

???
      - Taking us on a little detour to talk about Infrastructure Code
      - Can't understand microapps without it.
      ---

.left-column[
        ## Infrastructure code

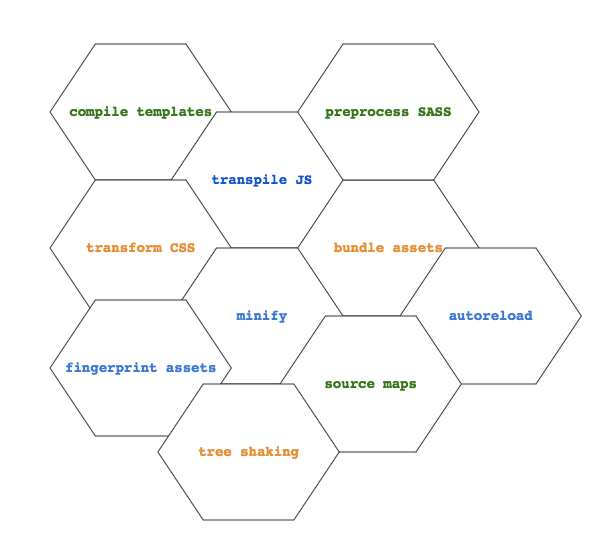

        ## Build System
      ]
      .right-column[
        ![compile transpile preprocess transform bundle minifi fingerprint sourcemaps tree shaking autoreload](media/build-pipeline.png)
      ]

???
      - compile
      - transpile
      - preprocess
      - bundle
      - minify
      - fingerprint

---

.left-column[
        ## Infrastructure code
        ## Request Handling
      ]
      .right-column[

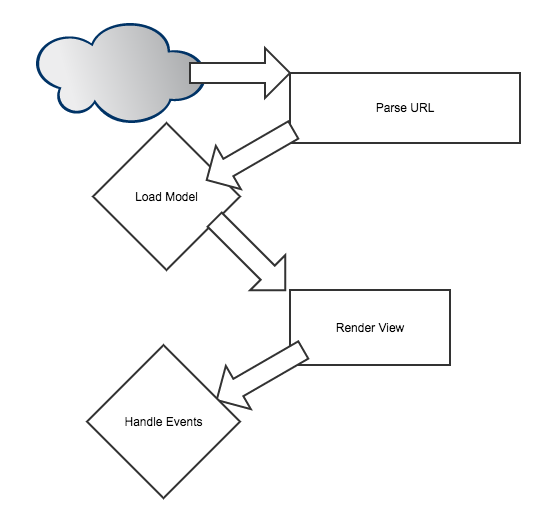

        ![flow chart of simple user flow request](media/simple-request-handling.png)
      ]
      ---

.left-column[
        ## Infrastructure code
        ## Request Handling (for realz)
      ]
      .right-column[

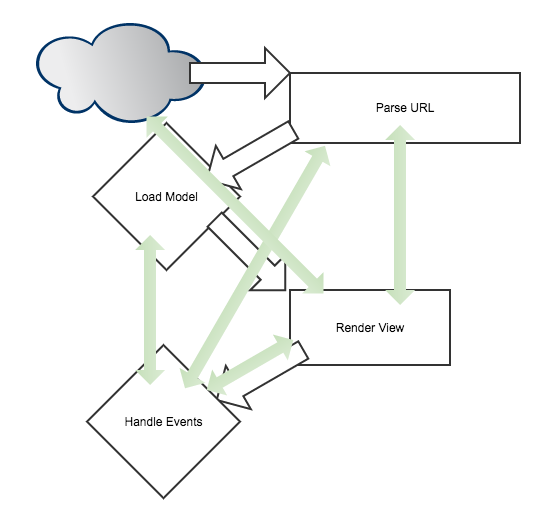

        ![simple request flowchart with confusing arrows](media/request-handling.png)
      ]

---

.left-column[
        ## Infrastructure code
        ## Request Handling (for realzy realz realz)
      ]
      .right-column[

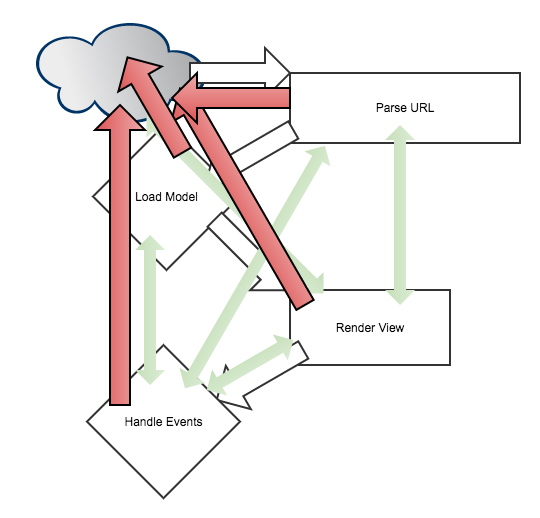

        ![simple request flowchart with more confusing arrows](media/complicated-request-handling.png)
      ]

---

.left-column[
        ## Infrastructure code
        ## So Much More
      ]
      .right-column[

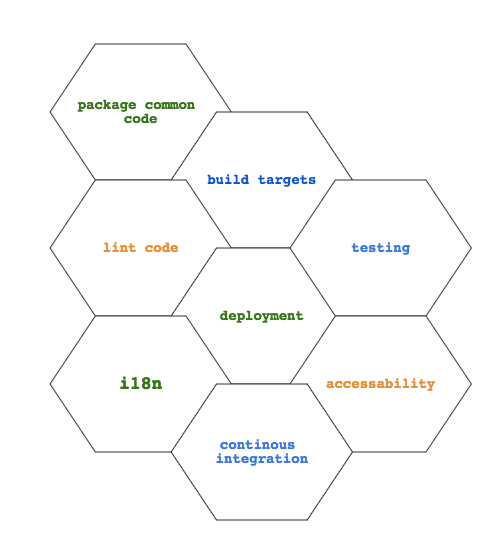

        ![package lint build test deploy translation ci accessibility](media/other-tasks.png)
      ]

---

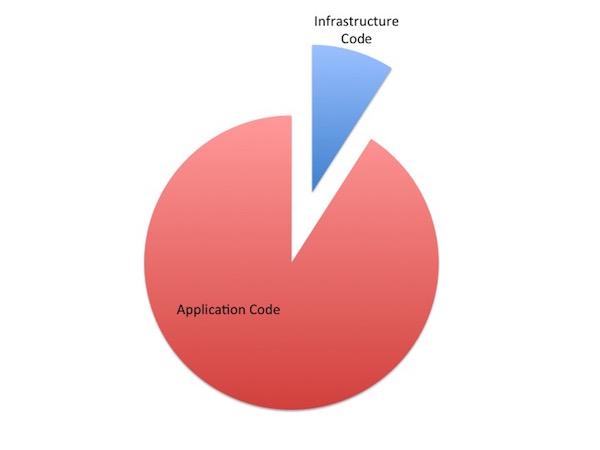

![large application graph](media/large-app.jpg)

---

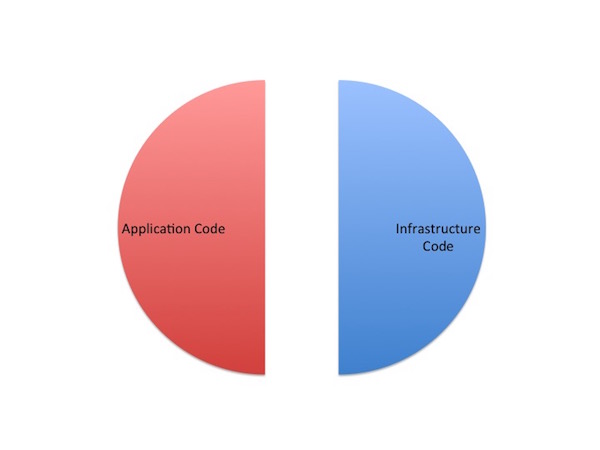

![medium application graph](media/medium-app.jpg)

---

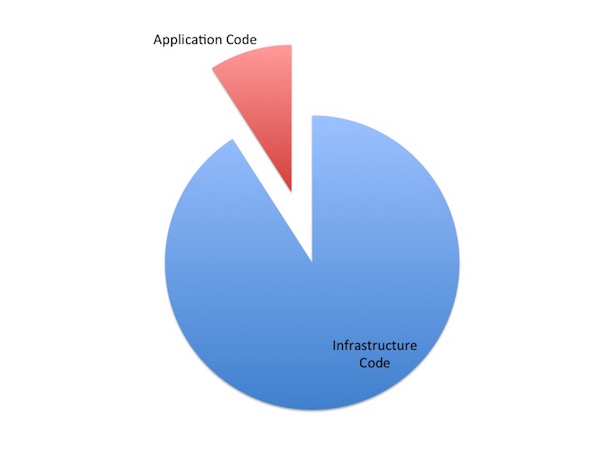

![small application graph](media/small-app.jpg)

---

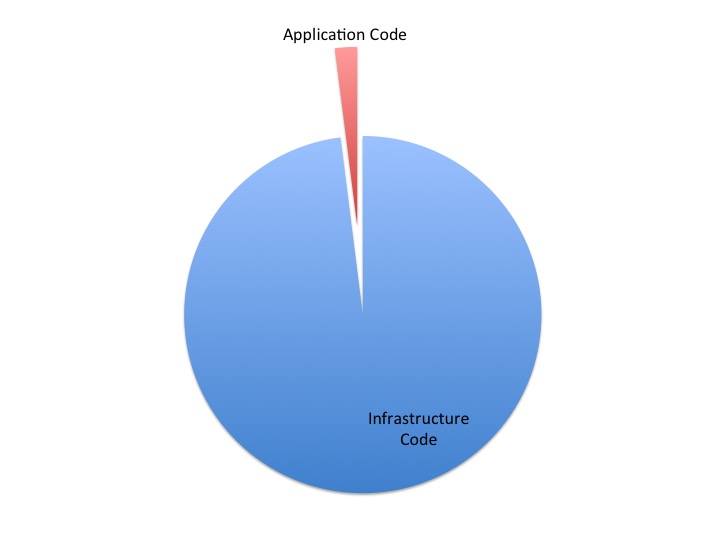

![micro application graph](media/micro-app.jpg)

---

.minibox[![small microapp graph](media/micro-app-mini.jpg)]
      .minibox[![small microapp graph](media/micro-app-mini.jpg)]
      .minibox[![small microapp graph](media/micro-app-mini.jpg)]
      .minibox[![small microapp graph](media/micro-app-mini.jpg)]
      .minibox[![small microapp graph](media/micro-app-mini.jpg)]
      .minibox[![small microapp graph](media/micro-app-mini.jpg)]
      .minibox[![small microapp graph](media/micro-app-mini.jpg)]
      .minibox[![small microapp graph](media/micro-app-mini.jpg)]

---
      class: center, middle
      # Too Far Dude!
      ---
      # Cognitive Load for EVERY Application

.square[
      ### Getting Started
      - Project Structure
      - Build Pipeline
      - Dependency Loading
      - Test runner / testing pattern
      - Feedback Loop
      ]

.square[
      ### Active Development
      - Request Routing
      - Assets
      - Error / Loading States
      - #### Solve The Actual Problem
      ]

.bigsquare[
      ### Production / Maintenance Mode
      - Deployment
      - QA / Feature Testing
      - Continuous Integration
      - Stay up to date
      - Apply Security fix
      - Support new Browsers
      - Improve Performance
      - Why is this even here?
      - Who wrote this shit?
      - Damn I wrote this shit. 2015 me was an idiot!
      - #### Add New Features
      ]

---
      class: center, middle

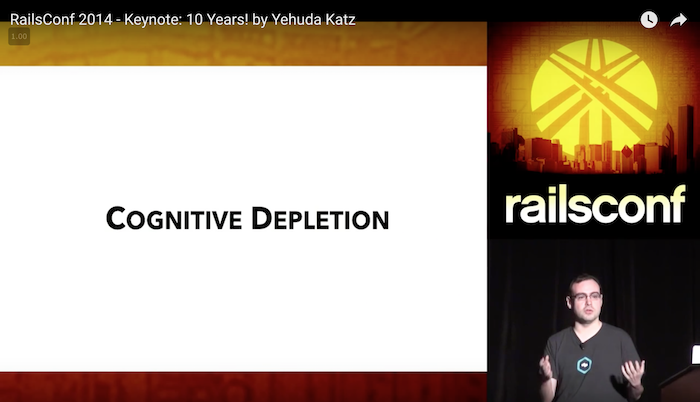

      ![Yehuda Katz Railsconf 2014](media/cognitivedepletion.png)

???
      ## Since I stole the concept for thsi problem from Yehuda it's only fair that we steal his solution as well.

---
      class: center, middle
      # Ember (An SDK for the Web)

--
      class: emberbackground

.square[
      ### Getting Started
      - <input type='checkbox' checked> Project Structure
      - <input type='checkbox' checked> Build Pipeline
      - <input type='checkbox' checked> Dependency Loading
      - <input type='checkbox' checked> Test runner / testing pattern
      - <input type='checkbox'> Feedback Loop
      ]

.square[
      ### Active Development
      - <input type='checkbox' checked> Request Routing
      - <input type='checkbox' checked> Assets
      - <input type='checkbox' checked> Error / Loading States
      - #### <input type='checkbox'> Solve The Actual Problem
      ]

.bigsquare[
      ### Production / Maintenance Mode
      - <input type='checkbox'> Deployment
      - <input type='checkbox'> QA / Feature Testing
      - <input type='checkbox'> Continuous Integration
      - <input type='checkbox' checked> Stay up to date
      - <input type='checkbox'> Apply Security fix
      - <input type='checkbox' checked> Support new Browsers
      - <input type='checkbox' checked> Improve Performance
      - <input type='checkbox'> Why is this even here?
      - <input type='checkbox'> Who wrote this shit?
      - <input type='checkbox'> Damn I wrote this shit. 2015 me was an idiot!
      - #### <input type='checkbox'> Add New Features
      ]

???

- Semantic versioning lets us skip versions without worrying about issues
      - Deprecations make it possible to prepare for upgrade with spare cycles
      - Share common functionality in addons
      - Connect to any API with adapters
      ---
      class: center, middle
      # Because we have standardized our platform we can standardize our tooling

---
      class: toolsbackground
      # Platform Tooling
      .square[
      ### Getting Started
      - <input type='checkbox' checked> Project Structure
      - <input type='checkbox' checked> Build Pipeline
      - <input type='checkbox' checked> Dependency Loading
      - <input type='checkbox' checked> Test runner / testing pattern
      - <input type='checkbox' checked> Feedback Loop
      ]

.bigsquare[
      ### Production / Maintenance Mode
      - <input type='checkbox' checked> Deployment
      - <input type='checkbox' checked> QA / Feature Testing
      - <input type='checkbox' checked> Continuous Integration
      - <input type='checkbox' checked> Stay up to date
      - <input type='checkbox' checked> Apply Security fix
      - <input type='checkbox' checked> Support new Browsers
      - <input type='checkbox' checked> Improve Performance
      - <input type='checkbox' checked> Why is this even here?
      - #### <input type='checkbox'> Add New Features
      ]

???
      - Travis
      - green keeper
      - netlify
      - heroku
      - ember-cli makes onboarding new team members supser fast
      - Standardizing makes it easy to farm out work because you know what you will get back.

---
      # Simple Commands

```bash
        $ ember generate component new-feature
      ```
      --
      ## Can ensure consistency
        - Code structure
        - Test Structure
        - Implementation and Test Skeleton

--
      ## and Maintainability
        - Tests document functionality
        - Consistency in approach allows you to focus on the problem

---
      # Simple Commands

```bash
        $ ember test
      ```
      --
      ## Can do many things
      - Build App
      - Load test fixtures
      - Start a browser session
      - Keep track of failures

---
      # Simple Commands

```bash
        $ ember deploy production
      ```
      --
      ## Can hide complicated details
      - Ship assets to AWS / send index.html to Redis
      - Send everything to server via ssh
      - Convert index.html into JSON and ship assets to azure
      - Deploy to PageFront

---
      class: center, middle

# Some Examples

---

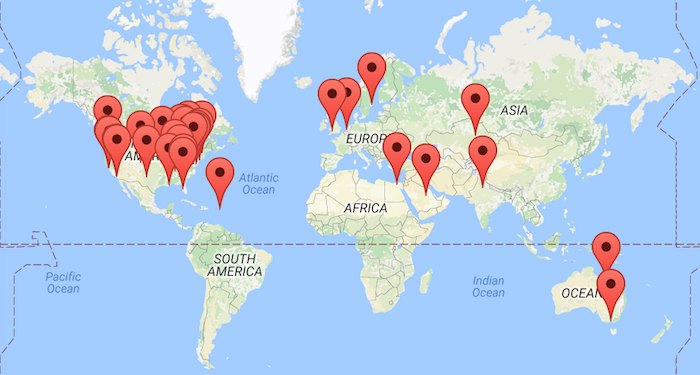

      # Data Visualization (Map of Ilios Schools)

![ilios map](media/ilios-map.png)
      ---

.right-column[
        ```html
          <div id="map"></div>
          <script>
            var map;
            function initMap() {
              map = new google.maps.Map(document.getElementById('map'), {
                center: {lat: 37.7749, lng: -122.4194},
                zoom: 8
              });
            }
          </script>
          <script src="https://maps.googleapis.com/maps/api/js?key=YOUR_API_KEY&callback=initMap"
          async defer></script>
        ```

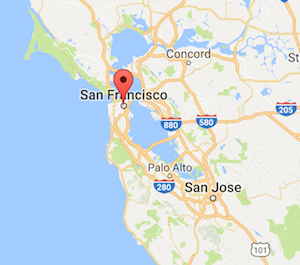

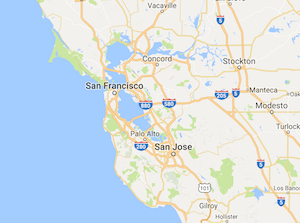

![blank map of SF](media/maps/first.png)
      ]

---

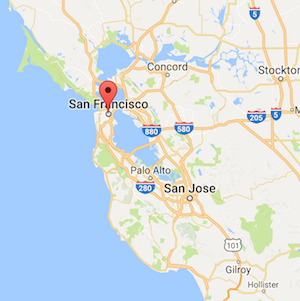

.right-column[
        ```html
        <div id="map"></div>
        <script>
          let map;
          function initMap() {
            let latLng = {lat: 37.7749, lng: -122.4194}
            map = new google.maps.Map(document.getElementById('map'), {
              center: latLng,
              zoom: 8
            });
            let marker = new google.maps.Marker({
              position: latLng,
              map: map,
              title: 'UCSF!'
            });
          }
        </script>
        <script src=
        "https://maps.googleapis.com/maps/api/js?key=APIKEY&callback=initMap"
        async defer></script>
        ```

![blank map of SF](media/maps/second.png)
      ]

???
      # Getting out of hand
      - How do I figure out coordinates for each school
      - What school do each latitude and longitude represent
      - Keep having to press refresh
      - ## Where do I store the API key?
      ---
      .left-column[
        ### Ilios map
        ### As an Ember Microapp
      ]

.right-column[
        ```bash
        $ ember new map
        $ cd map
        $ ember generate component schools-map
        $ ember add ember-g-map
        $ ember serve
        ```

```handlebars
        {{#g-map as |context|}}
          {{#each (await codedLocations) as |obj|}}
            {{g-map-marker context lat=obj.lat lng=obj.lng}}
          {{/each}}
        {{/g-map}}
        ```
      ]
      ---
      .left-column[
        ### Ilios map
        ### As an Ember Microapp
      ]

.right-column[
        ```javascript
        export default Component.extend({
          locations: [
            'SF,ca',
          ],
          codedLocations: computed('locations.[]', function(){
            return new Promise(resolve => {
              map(this.get('locations'), location => {
                return this.getLatLongForAddress(location);
              }).then(data => {
                resolve(data);
              });
            });
          }),
          getLatLongForAddress(address){
            return new Promise(resolve => {
              let request = `${uri}/geocode/json?&key=${key}&address=${address}`;
              $.getJSON(request, (response) => resolve({ response.results[0].geometry.location.lat,response.results[0].geometry.location.lng}));
            });
          },
        });
        ```

![blank map of SF](media/maps/third.png)
      ]

???
      # Same map
        - Using city name instead of lat / long
        - Lots of ember stuff
          - promises
          - computed properties
          - template separation
        - Ember cli stuff
          - live reload
          - ember server
          - project structure
          - linting
        - Options to store the key
      # Ember isn't your only choice for this - but it is a really good one
      ---
      .left-column[
        ### Ilios map
        ### As an Ember Microapp
        ### Next steps
      ]

.right-column[
      ### Keep it
      - Add Labels
      - Different markers for Consortium members
      - Data from external source

### Throw it away?
      ]

---
      # Data Visualization (Ilios Team)

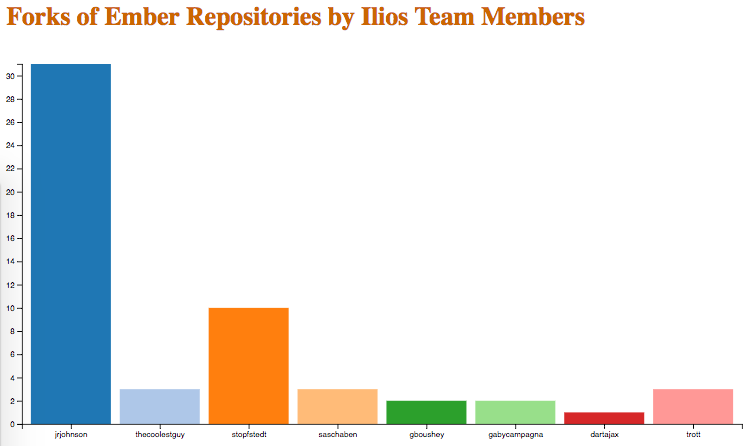

![chart showing forks of ember projects by ilios team members](media/ember-forks.png)

???
      # Built for this talk to make a point
      ## If you don't have the ability to contribute fixes this probably isn't for you

---
      .left-column[
        ### Team Ember Contributions
        ### Route
      ]

.right-column[
      ```javascript
      export default Route.extend({
        async model(){
          let users = [];
          for (let i = 0; i < this.users.length; i++) {
            const username = this.users[i];
            const repositoryNames = await this.getRepositoriesForUser(username);
            let user = Object.create({
              username,
              repositoryNames
            });
            users.push(user);
          }

return users;
        },
      });

```
      ]

---
      .left-column[
        ### Team Ember Contributions
        ### Visualization
      ]

.right-column[
      ```javascript
      export default Component.extend({
        tagName: 'svg',
        didReceiveAttrs() {
          run.scheduleOnce('render', this, this.draw);
        },
        draw(){
          const svg = select(this.element);
          // set the ranges
          const x = scaleBand().range([0, chartWidth]).padding(0.1);
          const y = scaleLinear().range([chartHeight, 0]);

svg.append("g").attr("transform", "translate(" + 40 + "," + 20 + ")");

x.domain(dataOrArray.map(d => d.username));
          y.domain([0, max(dataOrArray, d => d.repositoryNames.length)]);

// append the rectangles for the bar chart
          svg.selectAll(".bar").data(dataOrArray)
            .enter().append("rect")
              .attr("class", "bar")
              .attr("x", d => x(d.username))
              .attr("width", x.bandwidth())
              .attr("y", d => y(d.repositoryNames.length))
              .attr("height", d => chartHeight - y(d.repositoryNames.length))
              .attr('fill', d =>  color(d.username));

svg.append("g").attr("transform", "translate(0," + chartHeight + ")").call(axisBottom(x));
          svg.append("g").call(axisLeft(y));
        },
      });

```
      ]

---
      ![chart showing forks of ember projects by ilios team memebers](media/ember-forks.png)

## https://copy-writer-crab-43023.netlify.com/
      ## https://github.com/jrjohnson/team-contributions
      ---
      .left-column[
        ### Team Ember Contributions
        ### Next steps
      ]

.right-column[
      ### Keep it
      - Loading Indicator
      - Handle Errors
      - Authenticate User to get an API key
      - Cache Results

### Throw it away?
      ]

---

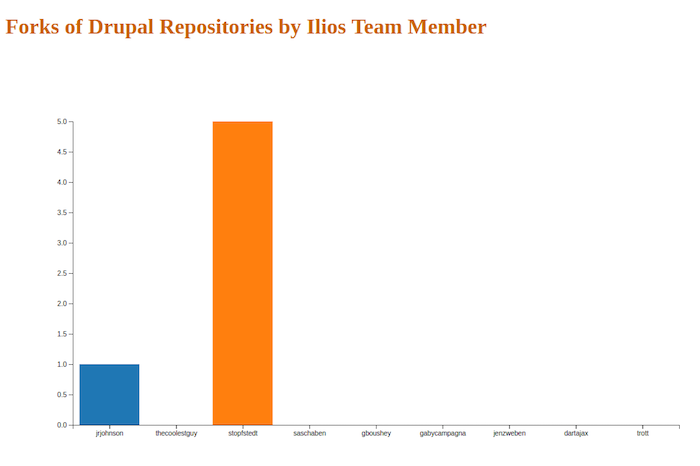

      # An accidental example

![chart showing forks of drupal projects by ilios team members](media/drupal-forks.png)

---

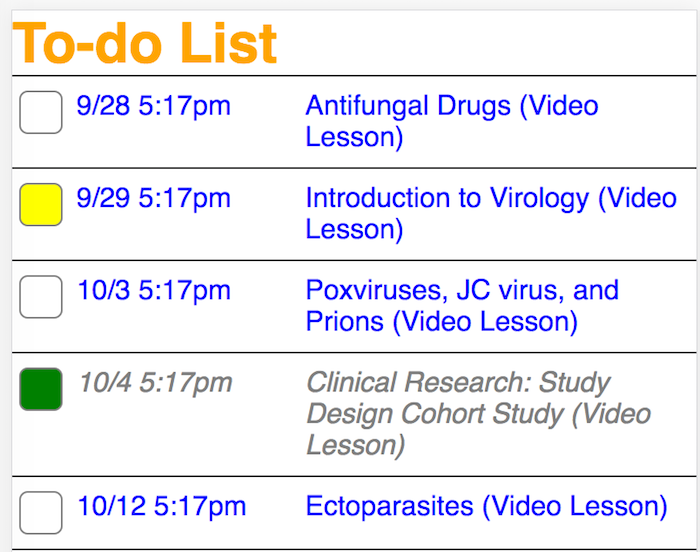

      # Demoing a Feature: Ilios Todo

https://ilios-todo.herokuapp.com/

![screen shot of ilios todo app](media/todo.png)

???
      - Highly requested feature, but not clear understanding of the problem
      - Threw together on a plane as a demo of what open APIs can mean
      - Has allowed us to have a discussion about what this feature actually is

---
      class:center
      ![hamster resting on their wheel](media/purposeofthewheel.jpg)

???
      - The less code you are responsible for the more problems you can solve

Credit: www.veryfunnypics.eu
      ---

## Discussion / Questions?
      ![Jon's avatar](media/gravatar.jpeg)

Slides at: https://jrjohnson.dev/talks/2017-03-microapps.html

<i class="fa fa-github"></i>jrjohnson <br />
      <i class="fa fa-slack"></i>jrjohnson <br />
      <i class="fa fa-twitter"></i>jrjohnson_ <br />

???

# Thanks
      - to the LinkedIn and the SF Ember group for the opportunity to speak
      - to the UCSF library for giving me the time to do this and other open source work
      - and the Ilios team who picked up a lot of slack as I started to panic about getting this talk finished.
