Ilios Architecture

How Form Follows Function

Jon Johnson (he/him)

jrjohnson
jrjohnson-ucsf
jon.johnson@ucsf.edu

Plain Text and Slides At:

QR code for https://www.jrjohnson.dev/talks/2025-05-ilios-architecture

https://www.jrjohnson.dev

Let's go back in time

Cover for a book on YUI 2

Don't lose these books, you can't buy them anymore. Ok, bye!

-Stefan Topfstedt, 2014

The year is 2013, and Ilios is in trouble
The lead dev just left for IT, and handed me a book.
We need to update everything right now, but we also need to add features, oh and we need it fast.

deepCloneAssociativeArray

/**
 * Written because slice() is dysfunctional with associative arrays.
 *
 * @return a deep copy of the associative array (the returned array is its own unique
 *                 Array instance, and the objects in the array have clone() called on them -
 *                 so they must implement that). If originalArray is null, null is returned.
 */
ilios.utilities.deepCloneAssociativeArray = function (originalArray) {
    var rhett = null;
    if (originalArray != null) {
        rhett = new Array();
        for (var key in originalArray) {
            rhett[key] = originalArray[key].clone();
            rhett.length++;
        }
    }
    return rhett;
};

Good, Fast, Cheap

Pick Three

Poorly Drawn Lines Cartoon, mouse says you have to choose your battles, crow says I choose all of them

https://poorlydrawnlines.com/comic/choose/

What is Ilios?

Ilios is a curriculum management platform for the Health Professions educational community. It is a user-friendly, flexible, and robust web application. Ilios collects, manages, analyzes, and delivers curricular information.

Built by and for the health professions, Ilios supports the sharing of curriculum outcomes and materials among programs, departments, schools and institutions, while maintaining the flexibility to accommodate the unique practices within our diverse health professions community.

https://www.iliosproject.org/

A Segment of Ilios Data

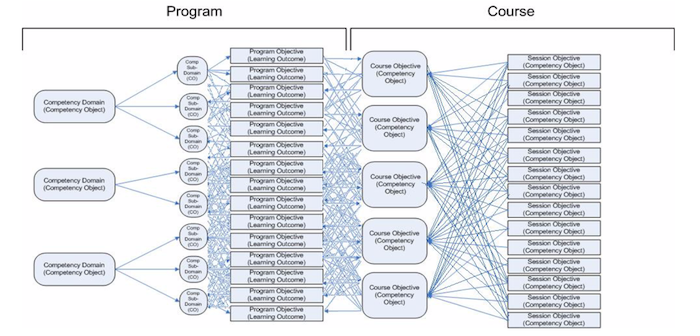

Session, Course, and Program Objectives Linked to Competencies

ilios data sample

Ilios is a Data Management Productivity ApplicationData Access
Easy to read, writes, and integrate with
Everything should be accessible through the API
Without support!
Productivity
Feels like an application
Classic UX problems
Adding features should be easy
Support for all types of devices

Ilios is a Data Management Productivity ApplicationData Access
Easy to read, writes, and integrate with
Everything should be accessible through the API
Without support!
Productivity
Feels like an application
Classic UX problems
Adding features should be easy
Support for all types of devices
a single hour of downtime at the wrong time is a disaster

My Philosophy, Buy the Bikeshed

The Best Code is No Code At All

If You Have to Build It, Make Sure You Can Maintain It

If You Have to Maintain It, Make It Easy

https://blog.codinghorror.com/the-best-code-is-no-code-at-all/

Buy the Bikeshed

What You Think You Need

blank map of SF

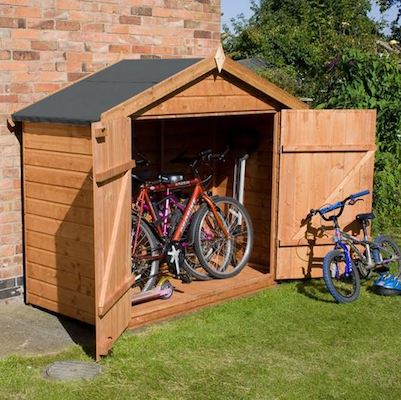

http://whatshed.co.uk/7-x-3-waltons-tongue-and-groove-apex-wooden-bike-shed/

What a Library Provides

http://www.sfbike.org/news/dero-bicycle-parking-solutions/

What You End up Building

Bike locked to fence with no bike parking sign

https://flic.kr/p/8qqnzn

What You Actually Need

Bikes on SF Muni Bus

https://www.sfmta.com/about-sfmta/blog/bigger-bike-racks-hilly-muni-routes

scary place for developers have to throw out all of that really fancy code that is tied very closely to my identity as a human
this isn't a bad thing (you should love your code), just try not to get into the situation too often

Buy the BikeshedBuild What You Have the Expertise to Maintain

Buy the BikeshedBuild What You Have the Expertise to MaintainBuild What You Have the FTE to Fix CONSTANTLY Expertise to Maintain

Focus on the SolutionIf the goal is to build a fast airplane why are you manufacturing bricks?

The Ilios Architecture

Finally, he get's to the point!

XKCD, long story about fire, emphasizing getting to the point

https://xkcd.com/1228/

Let's get into specifics, but keep in mind that most of these choices aren't technical, they're about the constraints and requirements for Ilios

The Ilios Architecture

API Server aka Backend

PHP

Symfony

Doctrine

JSON:API

GraphQL

https://github.com/ilios/ilios

Single Page Application (SPA) aka Frontend

JavaScript

Ember.js

JSON:API

GraphQL

https://github.com/ilios/frontend

PHP is where expertise was already, we considered other frameworks and languages, but ultimately didn't want to absorb the training cost.
A lot more time went into picking Ember.js. At the time Angular was going through a huge internal upgrade struggle, and React didn't exist.
Will talk a bit more about why each of these choices in a bit.

Why the split?Significantly easier to maintain, monorepos didn't really exist yetTests are easier to run (we were on Travis at the time, which was language specific)Easier to deployEasier to understandTried it all together, but it was hard, and not standard.

The Ilios Architecture

Containers

What runs on my machine, runs in production

https://hub.docker.com/orgs/ilios

The Ilios Architecture, Containers

Dockerfile

FROM php:8.4-fpm AS php-base
COPY --from=composer:latest /usr/bin/composer /usr/bin/composer
COPY --from=src /src/app /srv/app/
# configure PHP extensions required for Ilios and delete the source files after install
RUN set -eux; \
    mkdir -p var/cache var/log; \
    composer install --prefer-dist --no-dev --no-progress --no-scripts --no-interaction; \
    composer dump-autoload --classmap-authoritative --no-dev; \
    composer symfony:dump-env prod; \
    composer run-script --no-dev post-install-cmd; \
    sync
COPY docker/fpm/symfony.prod.ini $PHP_INI_DIR/conf.d/symfony.ini
COPY docker/fpm/ilios.ini $PHP_INI_DIR/conf.d/ilios.ini
ENTRYPOINT ["docker-entrypoint"]
CMD ["php-fpm"]

https://github.com/ilios/ilios/blob/dc8174b62c9fb5e5e9ea77b76207754408eaeefe/Dockerfile

The Ilios Architecture, Containers

Testing and Building

  build_containers:
    strategy:
      matrix:
        arch:
          - amd64
          - arm64
        image:
          - php-apache
          - nginx
          - fpm
    steps:
    - uses: docker/setup-buildx-action@v3
    - uses: docker/build-push-action@v6
      with:
        target: ${{ matrix.image }}
        push: false
        outputs: type=docker,dest=/tmp/${{ matrix.image }}-${{ matrix.arch }}.tar,compression=gzip
        tags: ${{ matrix.image }}:${{ matrix.arch }}-testing
        platforms: linux/${{ matrix.arch }}

https://github.com/ilios/ilios/blob/dc8174b62c9fb5e5e9ea77b76207754408eaeefe/.github/workflows/ci.yml#L145-L340

The Ilios Architecture, Containers

Testing and Building

  run_containers:
      matrix:
        arch:
          - amd64
          - arm64
    steps:
    - uses: actions/checkout@v4
    - name: FPM
      if: ${{ always() }}
      run: |
        docker image load --input /tmp/fpm-${{ matrix.arch }}.tar
        docker run -d --name ilios-fpm fpm:${{ matrix.arch }}-testing
        docker ps
        docker ps | grep -q ilios-fpm
        docker exec ilios-fpm php bin/console monitor:health
        docker stop ilios-fpm
        docker rm --volumes ilios-fpm
        docker image rm fpm:${{ matrix.arch }}-testing

https://github.com/ilios/ilios/blob/dc8174b62c9fb5e5e9ea77b76207754408eaeefe/.github/workflows/ci.yml#L145-L340

The Ilios Architecture, Containers

Deploying Tags

v3,v3.123,v3.123.0

jobs:
  deploy-docker-containers:
    runs-on: ubuntu-latest
    strategy:
      matrix:
        image:
          - php-apache
          - ...
    steps:
    - name: ${{ matrix.image }} to Docker Registry
      uses: docker/build-push-action@v6
      with:
        tags: ilios/${{ matrix.image }}:${{needs.tags.outputs.major}},ilios/${{ matrix.image }}:${{needs.tags.outputs.minor}},ilios/${{ matrix.image }}:${{needs.tags.outputs.patch}}
        target: ${{ matrix.image }}
        push: true
        provenance: false #https://github.com/gabrieldemarmiesse/python-on-whales/issues/407
        platforms: linux/amd64,linux/arm64

https://github.com/ilios/ilios/blob/dc8174b62c9fb5e5e9ea77b76207754408eaeefe/.github/workflows/deploy-tag.yml

The Ilios Architecture, Containers

Nightly Rebuild

v3,v3.123,v3.123.0

jobs:
  tags:
    steps:
    - uses: actions/checkout@v4
      with:
          fetch-depth: 0
          token: ${{ secrets.ZORGBORT_TOKEN }}
    - id: tag
      run: |
        LATEST_TAG=$(git describe --tags --abbrev=0)
        echo ${LATEST_TAG}
  deploy-docker-containers:
    runs-on: ubuntu-latest
    strategy:
      matrix:
        image:
          - php-apache
          - ...

https://github.com/ilios/ilios/blob/dc8174b62c9fb5e5e9ea77b76207754408eaeefe/.github/workflows/deploy-nightly.yml

The Ilios Architecture

Symfony API Server

https://github.com/ilios/ilios

Why Symfony?
- Awesome Documentation
- Great Testing Story
- Great Upgrade Story

The Ilios Architecture, Symfony API Server

Testing

Code Style

code_style:
runs-on: ubuntu-latest
steps:
- run: composer validate --no-check-all --no-check-version --strict
- run: vendor/bin/phpcs
- name: lint markdown
  uses: DavidAnson/markdownlint-cli2-action@v19
  with:
    globs: |
      CHANGELOG.md
      README.md
      docs/*.md
- name: lint yaml
  run: |
    vendor/bin/yaml-lint .github
    vendor/bin/yaml-lint docs
    vendor/bin/yaml-lint compose.yaml
- name: phpstan
  run: |
    vendor/bin/phpstan analyse --no-progress

https://github.com/ilios/ilios/blob/dc8174b62c9fb5e5e9ea77b76207754408eaeefe/.github/workflows/ci.yml#L25-L64

My thinking on code style, you can never comment on the style of the code in a PR if you don't have a linting rule preventing it
Style rules cause all the code in Ilios to look very similar
Styles tests build confidence when contributing for the first time

The Ilios Architecture, Symfony API Server

Testing

Continuous Integration

tests:
strategy:
  matrix:
    php-version: [8.4, 8.3]
steps:
- name: Use PHP ${{ matrix.php-version }}
  uses: shivammathur/setup-php@v2
  with:
    coverage: pcov
    php-version: ${{ matrix.php-version }}
- name: Run Tests
  run: vendor/bin/phpunit --coverage-clover build/coverage.xml
- name: Archive Coverage Report
  uses: actions/upload-artifact@v4
  with:
    name: coverage-output
    path: build/coverage.xml
    overwrite: true
    retention-days: 1

https://github.com/ilios/ilios/blob/dc8174b62c9fb5e5e9ea77b76207754408eaeefe/.github/workflows/ci.yml#L65-L93

Absolutely nothing beats tests

The Ilios Architecture

AWS

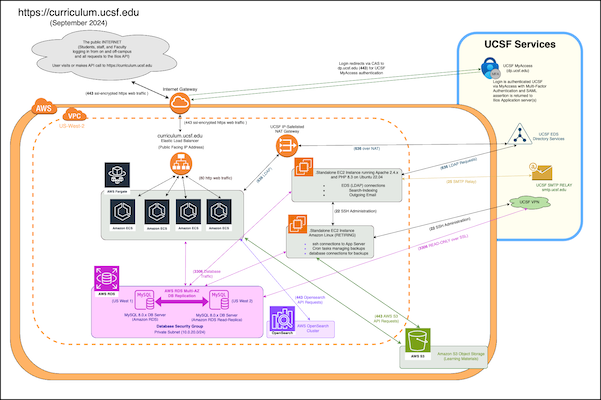

Diagram of Ilios AWS Architecture

https://wiki.library.ucsf.edu/pages/viewpage.action?pageId=670867637

this isn't my bit to share, Brandon and Jason are the experts here
what I can say is that we rely on AWS services to run. For example RDS instead of our own DB and Fargate instead of Kubernetes
again, buy the Bikeshed

The Ilios Architecture, The Frontend

Monorepo

https://github.com/ilios/frontend

Contains multiple apps
The frontend that almost everyone uses as well as two LTIs
LTI is very cool, it puts Ilios in Moodle, will work just as well with Canvas. 5 minutes to setup.

The Ilios Architecture, The Frontend

Ember.js SPA

https://demo.iliosproject.org

The Ilios Architecture, The Frontend

Netlify

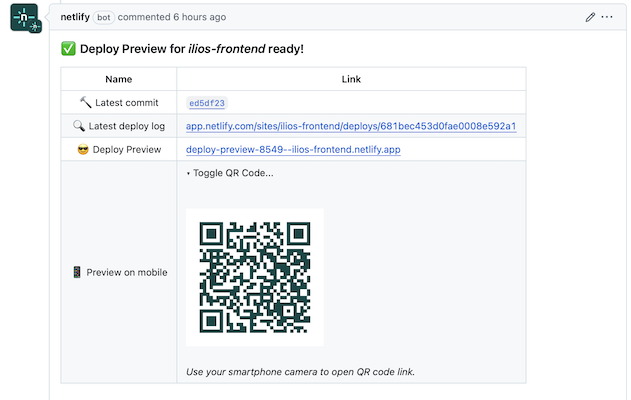

Netlify Pull Request Preview

The Ilios Architecture, The Frontend

Percy

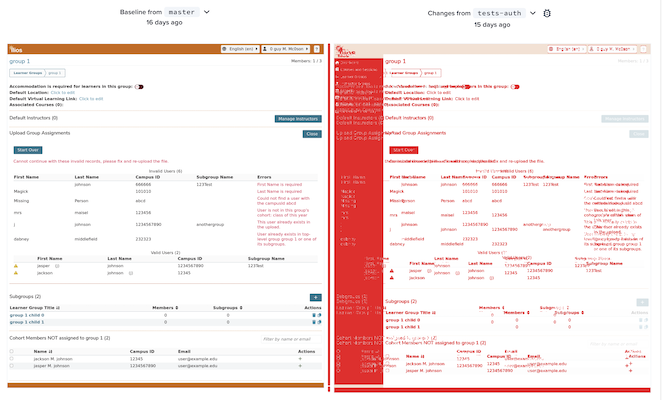

Percy Pull Request Visual Diff

The Ilios Architecture, The FrontendDeploy

We have to absorb some complexity in our frontend deployment because Ilios isn't run only at UCSF
Because other schools download and run Ilios we can't just deploy the html to a web server, which would be awesome
Instead we package the entire app into an archive and upload it to S3
Each API server then download the archive that matches their API version and can serve it

The Ilios Architecture, Frontend

Deploy

Ember CLI Deploy

const API_VERSION = require('ilios-common/config/api-version.js');
module.exports = function (deployTarget) {
  var ENV = {
    's3-index': {
      region: 'us-west-2',
      filePattern(context) {
        return context.archiveName;
      },
      distDir(context) {
        return context.archivePath;
      },
    },
    brotli: {
      filePattern: '**/*.{js,css,json,ico,map,xml,txt,svg,eot,ttf,webmanifest}',
      ignorePattern: 'index.json',
      keep: true,
    },
  };
};

https://github.com/ilios/frontend/blob/2f241c90bc7a737ad01898c05c08f6190337910a/packages/frontend/config/deploy.js

The Ilios Architecture, Frontend

Deploy

index.json

{
  "meta": [
    { "charset": "utf-8" },
    { "name": "description", "content": "" },
    { "name": "viewport", "content": "width=device-width, initial-scale=1" },
    { "name": "theme-color", "content": "#cc6600" },
    { "name": "apple-mobile-web-app-capable", "content": "yes" },
    { "name": "apple-mobile-web-app-status-bar-style", "content": "black" },
  ],
  "script": [
    {},
    {
      "src": "/ilios-loading/display-loader.d911ede498a82bcd652f366f4cd0fd8a.js"
    },
    {},
    { "src": "/assets/vendor.9c86d0ff26b2efa7b46bf1fc458df517.js" },
    { "src": "/assets/chunk.cd5e4b4b99b2dfbe70c3.js" },
    { "src": "/assets/chunk.8cfb67599df1b87bece5.js" },
    {}
  ]
}

The Ilios Architecture, Frontend

Deploy

Github Actions Deploys

jobs:
  deploy-frontend:
    name: Deploy Frontend and Create Sentry Release
    steps:
      - name: Ember CLI Deploy
        run: pnpm --filter frontend run deploy:production
        env:
          AWS_ACCESS_KEY_ID: ${{ secrets.AWS_ACCESS_KEY_ID }}
          AWS_SECRET_ACCESS_KEY: ${{ secrets.AWS_SECRET_ACCESS_KEY }}

https://github.com/ilios/frontend/blob/2f241c90bc7a737ad01898c05c08f6190337910a/.github/workflows/deploy-production.yml

The Ilios Architecture, Frontend

Deploy

Sentry

jobs:
  deploy-frontend:
    name: Deploy Frontend and Create Sentry Release
    steps:
      - name: Create a Sentry.io release
        run: |
          # Create new Sentry release
          sentry-cli releases new ${{github.ref_name}}
          sentry-cli releases set-commits --auto ${{github.ref_name}}
          sentry-cli releases files ${{github.ref_name}} upload-sourcemaps packages/frontend/tmp/deploy-dist/
          sentry-cli releases finalize ${{github.ref_name}}

https://github.com/ilios/frontend/blob/2f241c90bc7a737ad01898c05c08f6190337910a/.github/workflows/deploy-production.yml

Sentry is its own talk, next time!

The Ilios Architecture, Frontend

Prettier

Opinionated Code Formatter

https://prettier.io

Event better than linting, prettier just formats the code for you

The Ilios Architecture, Frontend

Tests as Code

package.json

{
  "scripts": {
    "preinstall": "npx only-allow pnpm",
    "format": "pnpm run --parallel format",
    "lint": "pnpm run --parallel \"/^lint:(hbs|js|css|format)$/\"",
    "lint:js": "pnpm run --parallel lint:js",
    "lint:hbs": "pnpm run --parallel lint:hbs",
    "lint:css": "pnpm run --parallel lint:css",
    "lint:fix": "pnpm run --parallel lint:fix",
    "lint:deps": "pnpm run --parallel lint:deps",
    "lint:format": "pnpm run --parallel lint:format",
    "start": "pnpm --filter frontend exec ember serve",
    "test:frontend": "pnpm --filter frontend exec ember exam --parallel=8 --load-balance",
    "test:test-app": "pnpm --filter test-app exec ember exam --parallel=8 --load-balance",
    "prepare": "husky"
  }
}

The Ilios Architecture, Frontend

Tests

Code Style

jobs:
  lint:
    name: Lint
    runs-on: ubuntu-latest
    timeout-minutes: 10
    steps:
      - name: Lint
        run: pnpm run lint
      - name: Test Dependency Installation
        run: pnpm install --resolution-only --no-frozen-lockfile

https://github.com/ilios/frontend/blob/2f241c90bc7a737ad01898c05c08f6190337910a/.github/workflows/ci.yml

The Ilios Architecture, Frontend

Tests

jobs:
  test:
    strategy:
      matrix:
        node-version: [20]
        workspace:
          - frontend
          - test-app
          - lti-course-manager
          - lti-dashboard
    steps:
      - name: Run Tests
        run: pnpm --filter ${{matrix.workspace}} exec ember exam --parallel=3 --load-balance --write-execution-file
        env:
          COVERAGE: true

https://github.com/ilios/frontend/blob/2f241c90bc7a737ad01898c05c08f6190337910a/.github/workflows/ci.yml

Poorly Drawn Lines, mouse says it's time to be productive

https://poorlydrawnlines.com/comic/productive/

Jayden, a super cute chihuahua waiting for you to ask a question

Questions?

Thanks!

Jon Johnson

jrjohnson
jrjohnson-ucsf
jon.johnson@ucsf.edu

Plain Text and Slides At:

QR code for https://www.jrjohnson.dev/talks/2024-10-agile

https://www.jrjohnson.dev

Help

Keyboard shortcuts

↑, ←, Pg Up, k

Go to previous slide

↓, →, Pg Dn, Space, j

Go to next slide

Home

Go to first slide

End

Go to last slide

Number + Return

Go to specific slide

b / m / f

Toggle blackout / mirrored / fullscreen mode

Clone slideshow

Toggle presenter mode

Restart the presentation timer

?, h

Toggle this help
